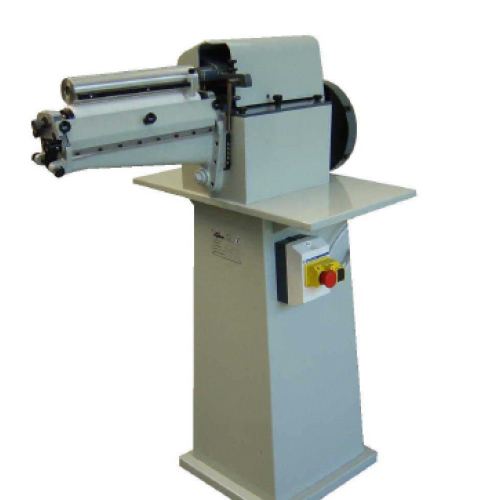

Cementing Machine MAV3300

Description

Our MAV 3300 cementing machine is suitable for cement every type of sole also with not uniform thicknesses and already attached heels by neoprene, polyurethanic adhesives or rubber solutions. The transport roller equipped with bayonet joint is easily extractable. The soft spreading roller is easily extractable, too and can be replaced with a brush roller for spreading shanks with steel plates used for insoles. Rollers with different softness are avaiable for neoprene or polyurethanic adhesive The useful cementing widht is of 300mm. The machine can be also supplied with head only with three-phase, single phase motor or variable speed by means of inverter

Technical Specifications

  • Dimension : 62x83x118
  • Weight : Kg 80
  • Electrical feeding : 230/50/1 , 400/50/3
  • Absorbed power : 0,22 Kw
  • Cementing width : 300 mm
